Installation
INSTALLATION

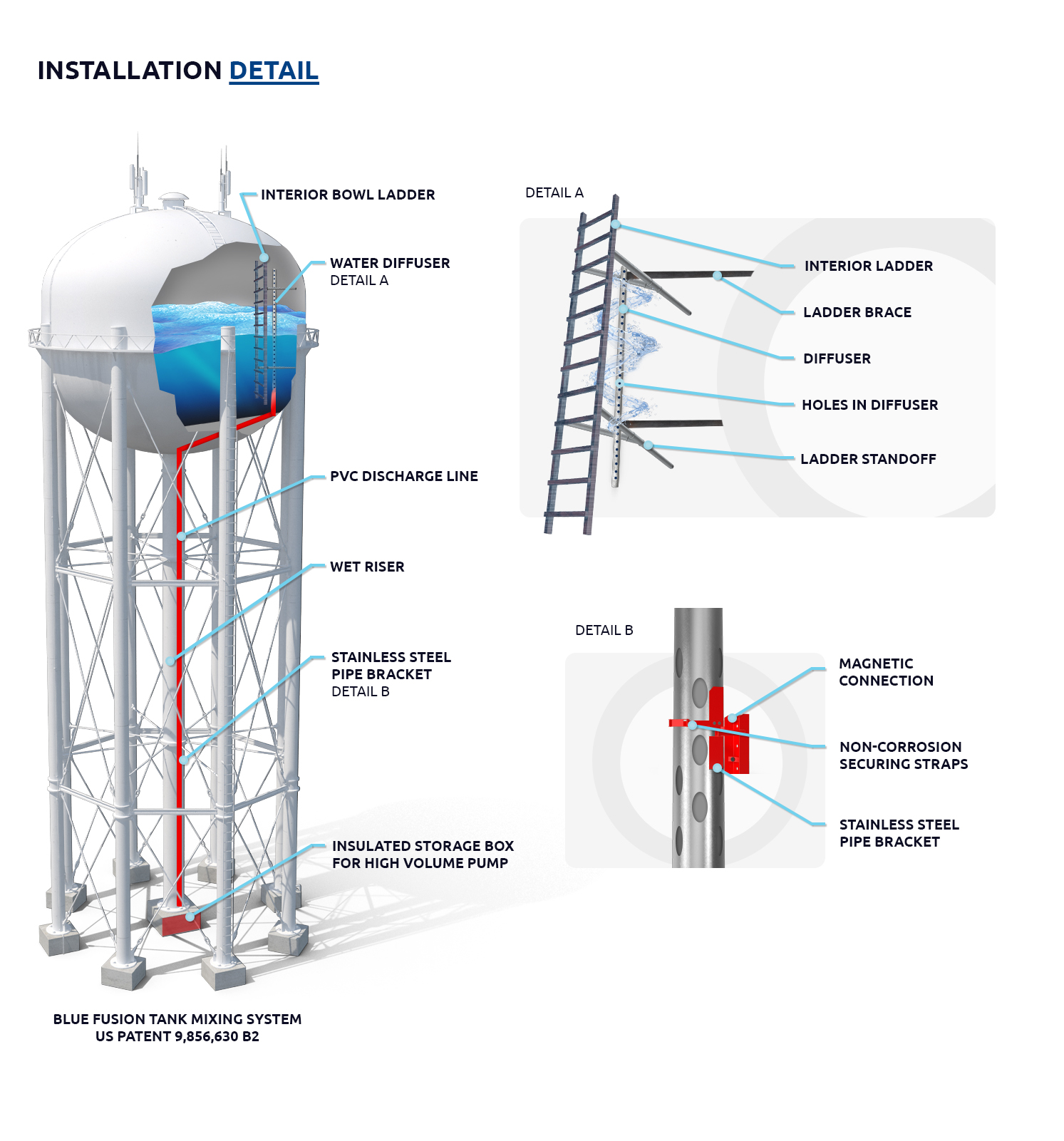

INSTALLATION PROCESS
Tank Draining Required for Installation:
This allows for a clean, inspected interior prior to installing any mixer. The point of the mixer is to increase water quality and a clean interior will only support that initiative. Other mixers on the market recommend draining the tank as well for the sole purpose of getting the inside up to par.
Built To Specs:
Blue Fusion will be installed, and built, based on your tank size and mixing needs. We’ll never sell our customers on a “one size fits all” because that can’t be true with the variety of different tanks
Aeration:
The benefits of aeration include but are not limited to: stripping the water DBPs, assisting In reducing the temperature of water in upper 1/3 of tank, assists in the continuous movement of the mixing action, and may help in reducing in the overall temp inside the tank. In the event that area above the water line develops corrosion, this aeration process helps to slow that corrosion above the water line in the tank.
Low Cost:
Allows the customer to get the most effective mixer on the market (built to specs) with the inclusion of aeration. The best of both worlds.
Warranty:
1 yr. warranty on parts / pump/ Motor. If pump fails during or after warranty, BF will provide a “loaner” pump until customer’s pump is repaired or replaced. 3 and 5 yr. extended warranties available.
Maintenance:
The Blue Fusion will offer a 1 yr warranty on the pump. If for some reason the pump needs to be replaced, Blue Fusion will provide a “loaner” pump until the customer’s pump is repaired.
Customer Service:
Work with a company with years of experience in the tank industry and the ability to speak with someone directly when you need something. Our response time can be as quick as same day or next day. Our customers are one of our highest priorities and our goal is to build long term customers by taking care of their needs.
VARIOUS TANK SIZES
| FLUTED PILLAR | GALLONS | DIAMETER | HEAD RANGE |
|---|---|---|---|
| In addition to its large water storage capacity, the fluted pillar elevated tank provides dependable storage space inside the shaft for offices and pumping facilities. | 250000 | 42′-0″ | 30′-4″ |
| 300000 | 44′-0″ | 30′-8″ | |
| 400000 | 44′-0″ | 39′-6″ | |
| 500000 | 50′-0″ | 37′-6″ | |
| 750000 | 64′-0″ | 40′-0″ | |
| 1000000 | 74′-0″ | 40′-0″ | |
| 1500000 | 86′-0″ | 42′-6″ | |
| 2000000 | 100′-0″ | 40′-0″ |
| COMPOSITE | GALLONS | SHAFT DIAMETER | TANK DIAMETER | HEAD RANGE |
|---|---|---|---|---|
| A composite elevated water tank is comprised of a welded steel tank for watertight containment, a single pedestal concrete support structure, a foundation, and accessories. | 500,000 | 24′-30′ | 54′-64′ | 27′-35′ |
| 750,000 | 30′ | 67′-6″-80′ | 30′-35′ | |
| 1,000,000 | 30′-40′ | 74′-87′ | 30′-40′ | |
| 1,500,000 | 40′-46′ | 80′-98′ | 35′-45′ | |
| 2,000,000 | 46′ | 88′-110′ | 40′-50′ |
| ELEVATED LEG | GALLONS | DIAMETER | HEAD RANGE |
|---|---|---|---|
| The Elevated Leg tank has been used by municipalities and for fire protection for decades. It is often called “the standard of the industry. | 50,000 | 22′-0″ | 18′-10″ |
| 60,000 | 22′-0″ | 22′-2″ | |
| 75,000 | 30′-0″ | 16′-0″ | |
| 100,000 | 30′-0″ | 20′-8″ | |
| 125,000 | 30′-0″ | 25′-5″ | |
| 150,000 | 32′-0″ | 28′-0″ | |
| 200,000 | 36′-0″ | 28′-3″ |
| DOUBLE ELLIPSODIAL | GALLONS | DIAMETER | HEAD RANGE |
|---|---|---|---|
| The double ellipsodial tank has been used by municipalities and for fire protection for decades. It is often called “the standard of the industry. | 20,000 | 18′-0″ | 11′-8 5/8″ |
| 25,000 | 18′-0″ | 13′-8 5/8″ | |
| 30,000 | 22′-0″ | 12′-0″ | |
| 35,000 | 22′-0″ | 13′-5″ | |
| 40,000 | 22′-0″ | 15′-6″ | |
| 50,000 | 22′-0″ | 18′-10″ | |
| 60,000 | 22′-0″ | 22′-2″ | |
| 75,000 | 30′-0″ | 16′-0″ | |
| 100,000 | 30′-0″ | 20′-8″ | 125,000 | 30′-0″ | 25′-5″ |
| 150,000 | 32′-0″ | 28′-0″ | |
| 200,000 | 36′-0″ | 28′-3″ | |
| 250,000 | 43′-0″ | 26′-6″ | |
| 300,000 | 43′-0″ | 31′-0″ | |
| 400,000 | 50′-0″ | 30′-8″ | |
| 500,000 | 56′-0″ | 31′-0″ | |
| 600,000 | 56′-0″ | 36′-6″ | |
| 750,000 | 65′-0″ | 35′-0″ | |
| 1,000,000 | 70′-0″ | 40′-0″ |
| SPHERE | GALLONS | SHAPES | DIAMETER | HEAD RANGE |
|---|---|---|---|---|
| Our standard multi-column design elevated toro is available in the sizes shown. | 50000 | Sphere | 19′-6″ | 15′-6″ |
| 100000 | Sphere | 20′-6″ | 16′-3″ | |
| 150000 | Sphere | 22′-0″ | 20′-0″ | |
| 200000 | Sphere | 24′-0″ | 21′-3″ | |
| 250000 | Sphere | 25′-0″ | 22′-9″ | |
| 500000 | Sphere | 27′-0″ | 25′-0″ | |
| 750000 | Sphere | 30′-0″ | 26′-0″ | |
| 1000000 | Sphere | 32′-0″ | 29′-6″ |
| STAND PIPE | GALLONS | DIAMETER | HEAD RANGE |
|---|---|---|---|
| A standpipe is a ground-supported storage tank with a height that is greater than its diameter. Its design helps generate storage and pressure with a low upfront cost compared to elevated tank geometries. | 200,000 | 36′-0″ | 28′-3″ |
| 250,000 | 43′-0″ | 26′-6″ | |
| 300,000 | 43′-0″ | 31′-0″ | |
| 400,000 | 50′-0″ | 30′-8″ | |
| 500,000 | 50′-0″ | 37′-6″ | |
| 500,000 | 56′-0″ | 31′-0″ | |
| 500,000 | 64′-0″ | 25′-0″ | |
| 600,000 | 56′-0″ | 36′-6″ | |
| 750,000 | 60′-0″ | 40′-0″ | |
| 750,000 | 65′-0″ | 35′-0″ | |
| 1,000,000 | 70′-0″ | 40′-0″ |
| GROUND STORAGE | GALLONS | DIAMETER | HEAD RANGE |
|---|---|---|---|
| Ground Storage tanks have a diameter that is greater than their height. Its design helps generate storage and pressure with a low upfront cost compared to elevated tank geometries. | 50,000 | 22′ | 20′ |
| 75,000 | 24′ | 23’6″ | |
| 10,0000 | 24′ | 27′ | |
| 150,000 | 29′ | 30′ | |
| 200,000 | 32′ | 33′ | |
| 250,000 | 29’6″ | 38′ | |
| 300,000 | 32′ | 40’6″ | |
| 400,000 | 32′ | 46’6″ | |
| 500,000 | 34′ | 50′ | |
| 600,000 | 40′ | 51′ | |
| 750,000 | 40′ | 57′ | |
| 1,000,000 | 40′ | 66′ |
